■仕 様 |
型 式 |
目量
(mm) |
測定範囲
(mm) |
目盛仕様 |
指示誤差(μm) |
戻り
誤差
(μm) |
繰返し
精密度
(μm) |
測定力
(N)以下 |
標準価格
(円) |
1/10回転
(隣接誤差) |
1/2回転 |
1回転 |
2回転 |
全測定
範囲 |
107-HG |
0.01 |
10 |
±0-50-100 |
6 |
±7 |
±8 |
±10 |
±10 |
4 |
5 |
1.4 |
6,240 |
107-DX |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
5,440 |
107 |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
4,830 |
107F |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
4,830 |
107-SWA |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
7,420 |
107-BL |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
5,020 |
107F-RE |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
8,240 |
107-LL |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
6,710 |

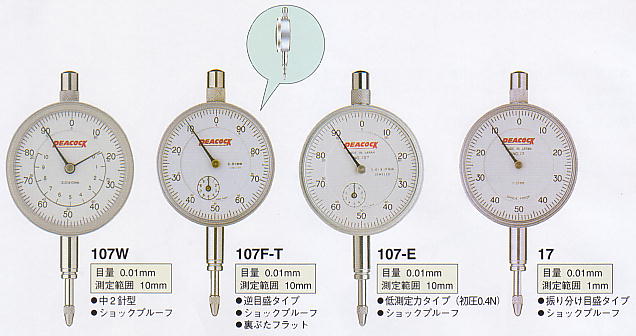

107W |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
12,300 |
107F-T |
0.01 |
10 |
±100-50-0 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
5,100 |
107-E |
0.01 |
10 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
初圧0.4 |
5,850 |
17 |
0.01 |
1 |
0-50-0 |
8 |
±9 |
±10 |
- |
- |
5 |
5 |
1.4 |
5,980 |

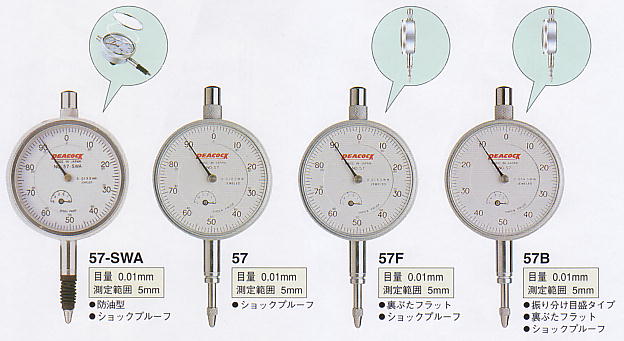

57-SWA |
0.01 |
5 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
7,690 |
57 |
0.01 |
5 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
4,830 |
57F |
0.01 |
5 |
±0-50-100 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
4,830 |
57B |
0.01 |
5 |
0-50-0 |
8 |
±9 |
±10 |
±15 |
±15 |
5 |
5 |
1.4 |
4,830 |
■外観寸法図 (mm) |
|
型 式 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J (公差) |
107-HG |
65 |
41.5 |
18.5 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107-DX |
65 |
50.7 |
17 |
55.7 |
14.5 |
20 |
5 |
7 |
52 |
8( 0~-0.03 ) |
107 |
65 |
41.5 |
18.5 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107F |
65 |
41.5 |
18.5 |
53 |
14.5 |
- |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107-SWA |
68 |
41.5 |
17.5 |
55 |
15 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107-BL |
65 |
41.5 |
18.5 |
53 |
14.5 |
|
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107F-RE |
65 |
41.5 |
18.5 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107-LL |
65 |
- |
18.5 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107W |
65 |
41.5 |
17.5 |
55 |
17 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107F-T |
65 |
41.5 |
18.5 |
53 |
14.5 |
- |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
107-E |
65 |
41.5 |
18.5 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
17 |
65 |
41.5 |
18.5 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
57-SWA |
65 |
41.5 |
18.5 |
55 |
15 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
57 |
65 |
41.5 |
18.5 |
53 |
14.5 |
20 |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
57F |
65 |
41.5 |
18.5 |
53 |
14.5 |
- |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
57B |
65 |
41.5 |
18.5 |
53 |
14.5 |
- |
4 |
6.5 |
49 |
8( 0~-0.03 ) |
|
